Magic-70 Multifunctional Engraving Machine

Magic-70 is a multifunctional cutting &amp engraving machine with 4 axes able to engrave on pendant, the inside of ring/bangle, the outside of ring/bangle with beautiful and indelible letters or patterns quickly and easily. It is good for 2D carving on wax, metal, acrylic, wood and metal, 3D carving on wax, chemical wood and is also good for cutting gold, silver, copper, brass, aluminum plate for name necklaces, etc.

USE

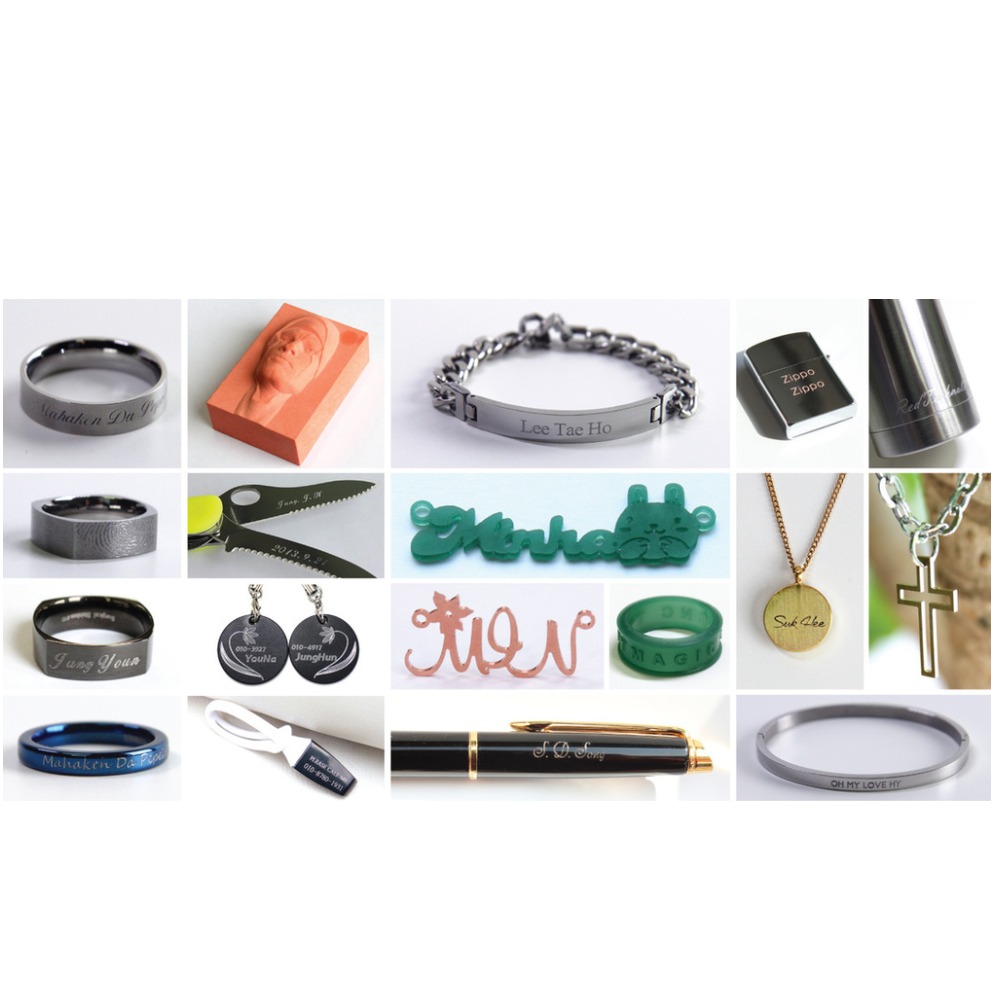

Engraving on the inside/outside of ring &amp bangle, engraving on jewelry products, medal, pendant, identification tag (pet tag), bracelet, necklace, nameplate, key chain, padlock, zippo lighter, knife, flat or slightly curved gift items and various metals or plastic materials, carving wax or chemical wood in 3D, cutting name necklaces.

SPECIFICATION

Size : 395mm(W) x 375mm(H) x 394mm(D)

Resolution : (XY) 0.005mm / (Z) 0.00125mm / (A)0.028125

Tool Diameter : 4mm

Max. engraving area : 140mm (X) x 100mm (Y) x 38.5mm (Z)

Weight : 32.5kg

Tool type : Diamond

Power Consumption : 47W

Power Supply : AC 100-240V 50/60HZ

Rotary : Outer Diameter 76mm / inner Diameter 50mm

Spindle Revolution : 15,000RPM

Spindle Motor Power : 27W
