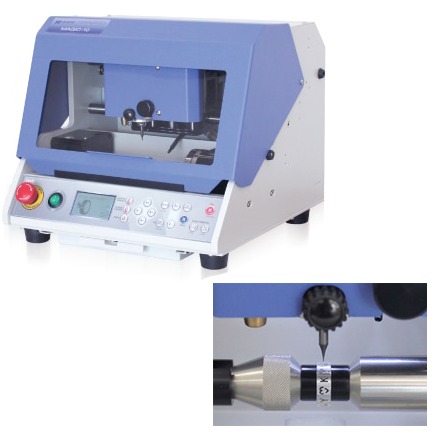

Magic-10 Ring Engraving Machine

MAGIC-10 is a milling processor exclusively for rings that performs many kinds of operations related with ring shaping in quick and easy steps- like milling cylinder-shaped materials, digging out grooves (for jewelries to be placed in), drilling, carving, engraving, millgrain-shaping and etc. There is no need for casting or welding and direct manufacture and producing ring’s outer-shaped minimizes extra processes. Also, high-speed rotating tool cuts and sculpts various metal materials (gold, silver, bronze and etc.) And diamond-tip tool engraves letters on outer/inner of rings and bangles.

Use

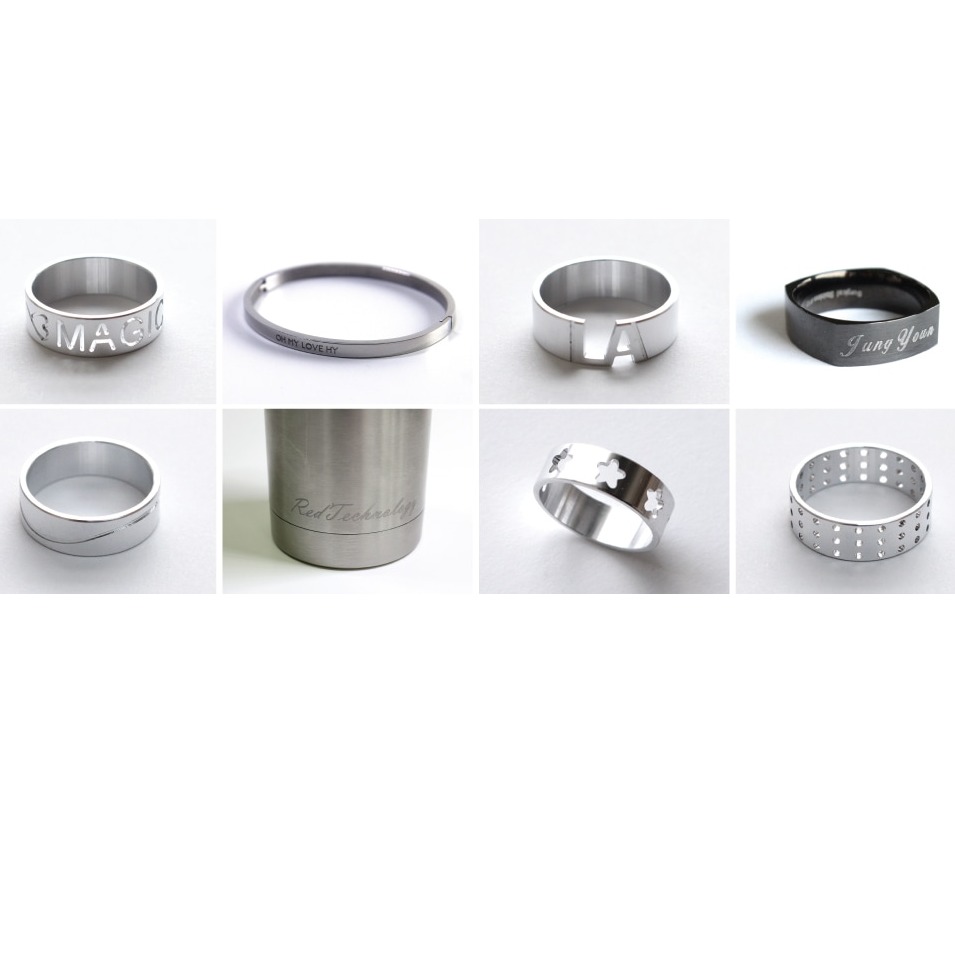

Engraving inner/outer of rings &amp bangles &amp cylinder shaped materials milling rings, digging out grooves (for jewelries to be placed in), drilling, carving, engraving, millgrain-shaping and etc

SPECIFICATION

Size : 348mm(W) x 309mm(H) x 345mm(D)

Resolution : (XY) 0.005mm / (Z) 0.00125mm / (A) 0.028125degree

Tool Diameter : 4mm

Rotary : Out Diameter 76mm / inner Diameter 35mm

Weight : 26.5kg

Spindle Revolution : 15,000 RPM

Spindle motor power : 27W

Power Consumption : 60W

Power Supply : AC 100-240V 50/60HZ
